Technical Guide

​

Architecture Overview

1. classify_intent → Determines if this is a new question or follow-up
2. text_to_sql → Generates SQL from natural language + schema
3. run_sql → Executes SQL against your database
4. analyse_data → Analyzes the data slice and extracts insights
5. create_chart → Generates chart configurations
6. summarizer → Creates final user-facing response

​

Key Technical Details

• Data handling: Only analyse_data receives actual data rows. text_to_sql and create_chart work with schema and context only.
• Golden Assets: Retrieved via RAG at runtime to provide few-shot examples for each tool
• Session memory: Maintains conversation context using thread IDs
• Streaming: All operations stream events in real-time

​

Integration Options

​

Option 1: Full Upsolve Application

​

Option 2: Embedded React Widget

​

Basic Usage

import { UpsolveChat } from "@upsolve/components";

<UpsolveChat
  tenantJWT={tenantJWT}
  agentId={agentId} // Optional: defaults to first available agent
/>;

​

Component Props

• tenantJWT (string): Authentication token for API requests. Generate this token using your tenant credentials.

• agentId (string): Specify which agent configuration to use. If omitted, the component automatically uses the first agent available in your organization.
• prompt (string): Initial message to send when the chat loads. Use this to start a conversation automatically.
  Copy

  Ask AI

  <UpsolveChat tenantJWT={token} prompt="Show me revenue trends for Q4" />


• apiHostOverride (string): Override the API endpoint. Default: https://api.upsolve.ai
  Copy

  Ask AI

  <UpsolveChat
    tenantJWT={token}
    apiHostOverride="https://custom-api.yourcompany.com"
  />


• useLocalApi (boolean): Enable local development mode. Default: false

​

Customization Options

<UpsolveChat
  tenantJWT={token}
  resolvedTheme="dark" // "light" or "dark"
/>

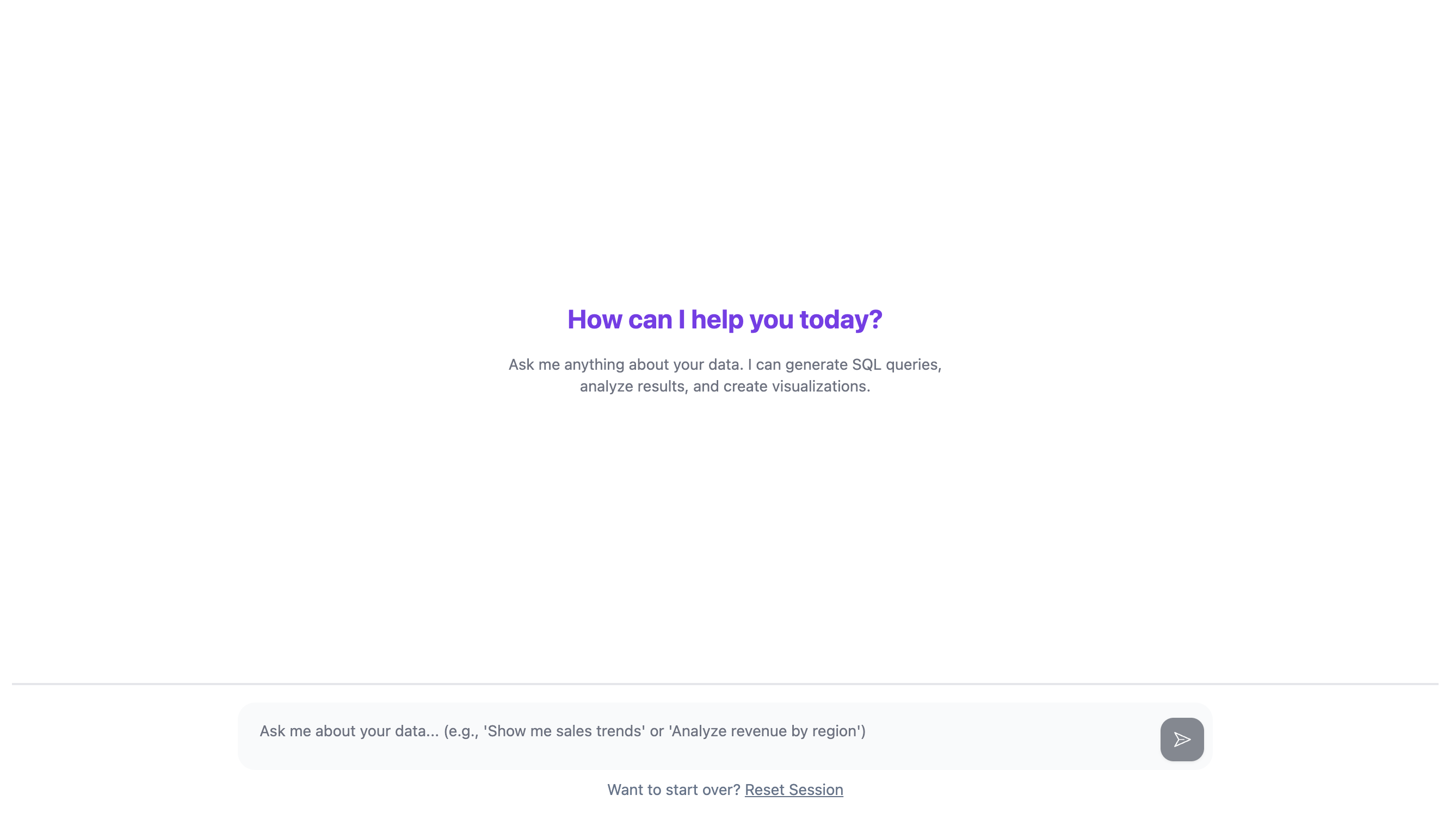

// Default welcome screen
<UpsolveChat tenantJWT={token} />

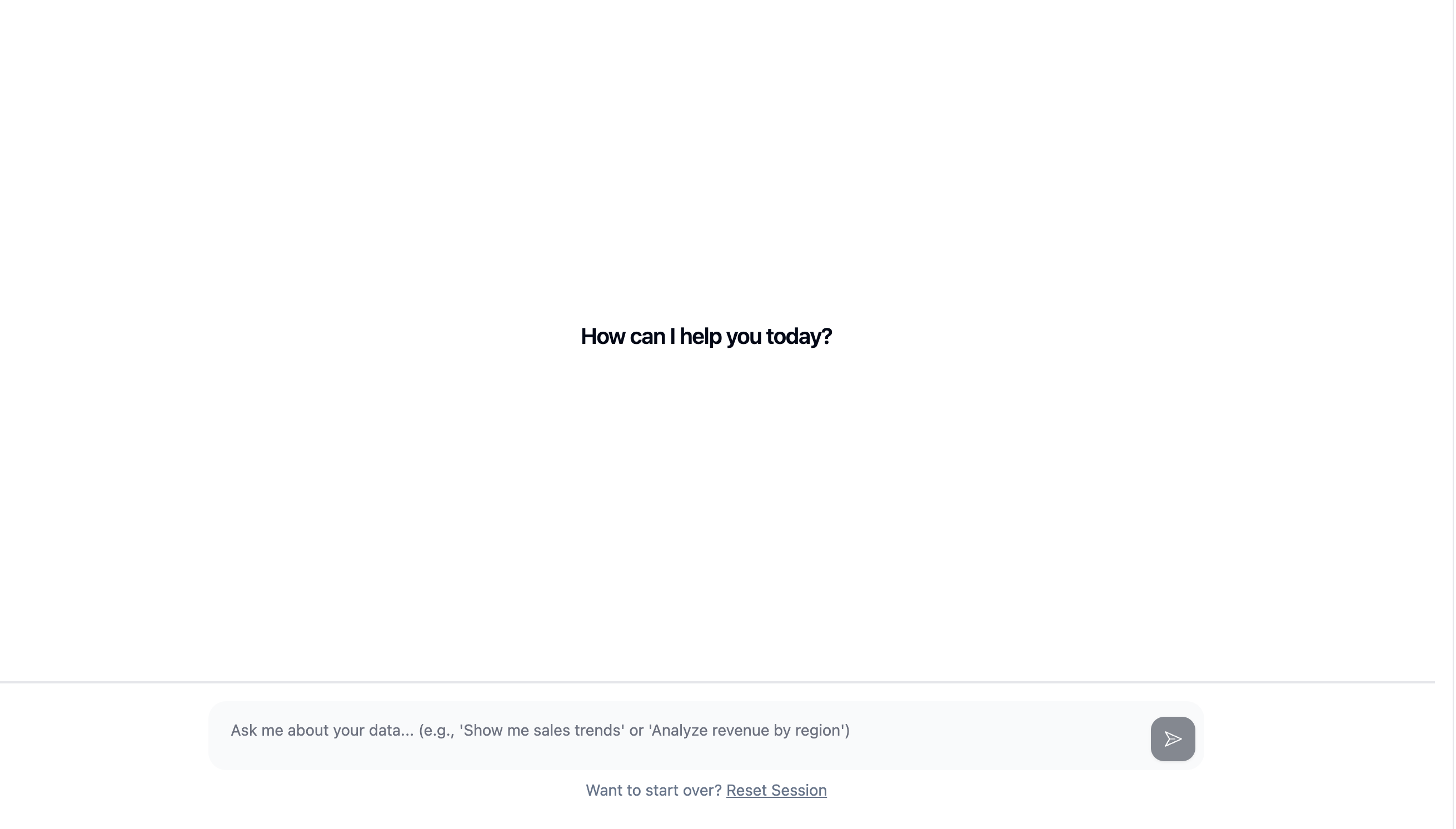

// Custom text
<UpsolveChat
  tenantJWT={token}
  welcomeScreenContent="How can I help you today?"
/>

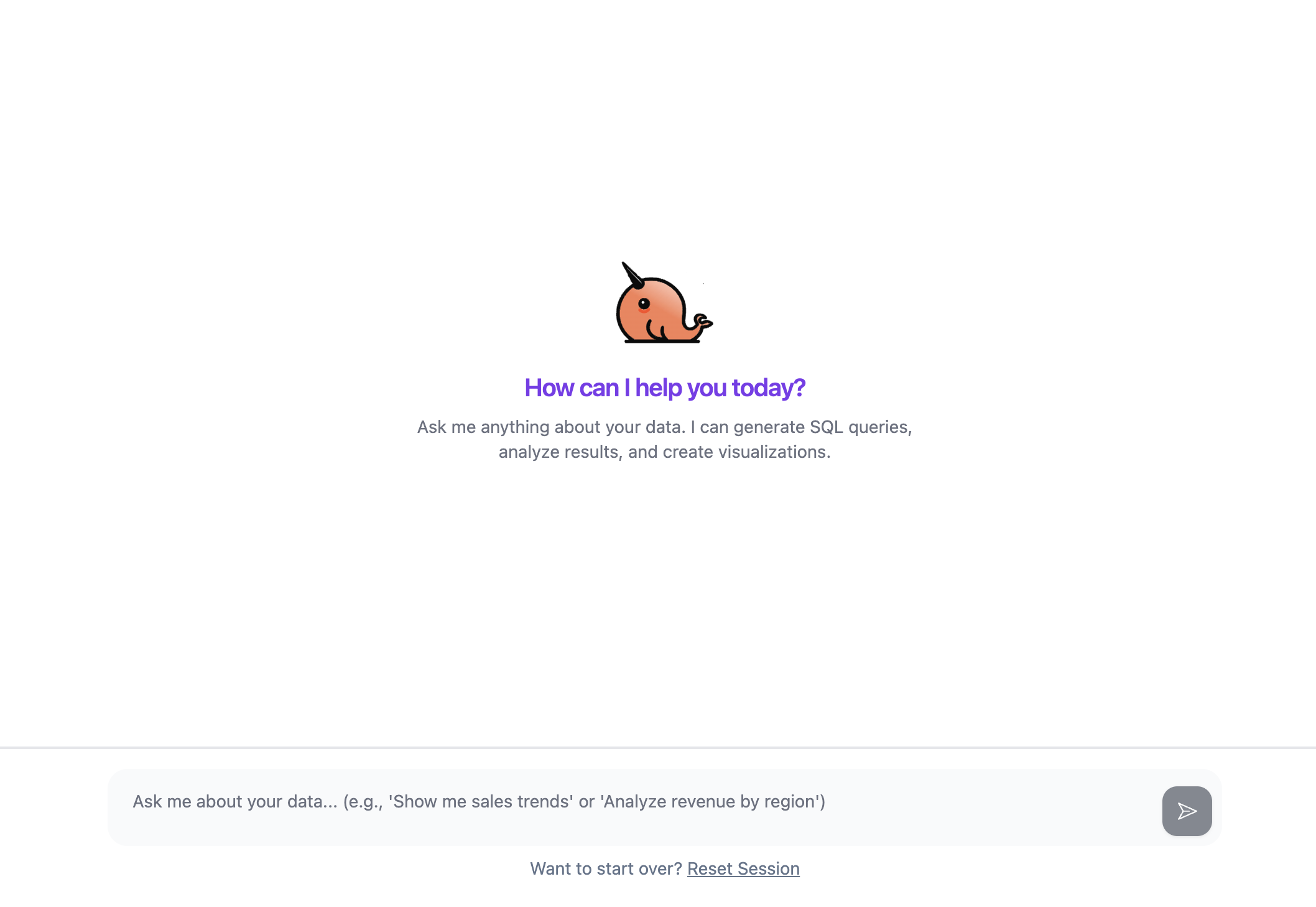

// Custom JSX component
<UpsolveChat
  tenantJWT={token}
  welcomeScreenContent={
    <div>
      <h2 className="text-purple">How can I help you today?</h2>
      <p>
        Ask me anything about your data. I can generate SQL queries, analyze
        results, and create visualizations.
      </p>
    </div>
  }
/>

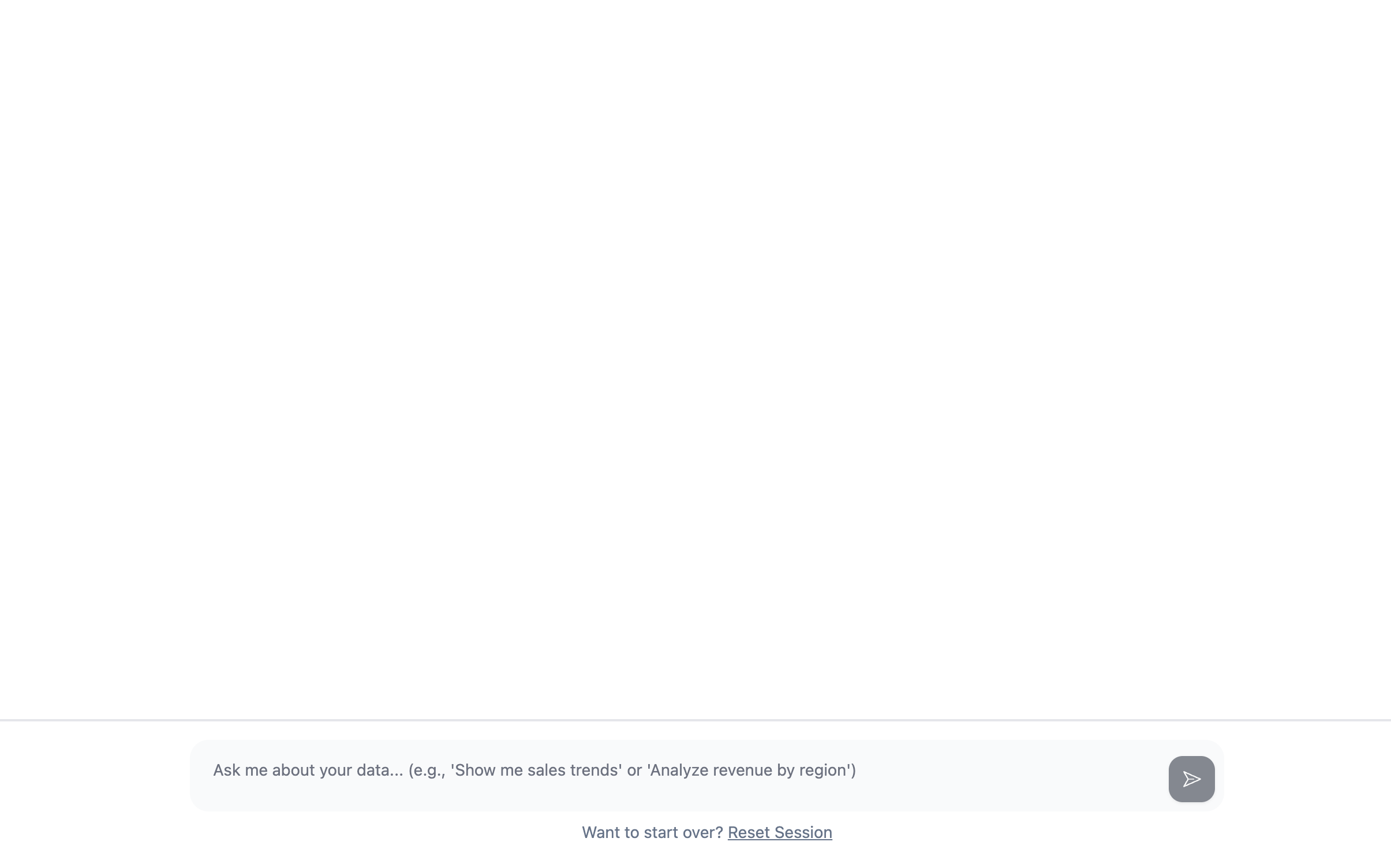

// Hide welcome screen entirely
<UpsolveChat tenantJWT={token} welcomeScreenContent={null} />

​

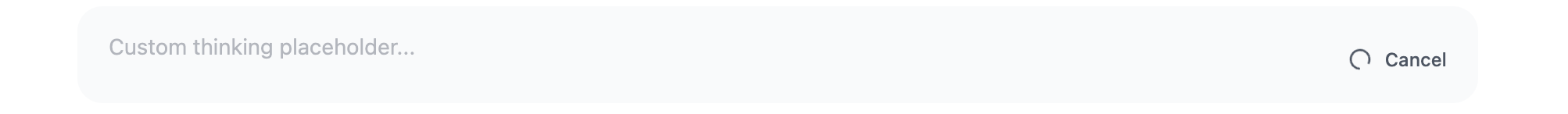

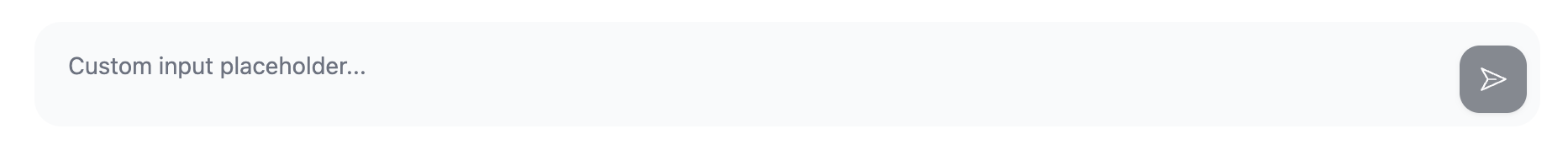

<UpsolveChat
  tenantJWT={token}
  placeholderOverrides={{
    inputPlaceholder: "Ask about your data...",
    thinkingPlaceholder: "Analyzing your request...",
    sqlGenerationPlaceholder: "Writing SQL query...",
    chartGenerationPlaceholder: "Creating visualization...",
  }}
/>

​

Option 3: Headless API Integration

const eventSource = new EventSource("/api/chat", {
  headers: { Authorization: `Bearer ${token}` },
});

eventSource.onmessage = (event) => {
  const data = JSON.parse(event.data);
  console.log(`Event: ${data.type}`, data);
};

{
  "type": "sql_generated",
  "data": {
    "sql": "SELECT revenue FROM sales WHERE date > '2024-01-01' LIMIT 100"
  }
}

{
  "type": "sql_executed",
  "data": { "message": "Query executed successfully", "rows": 42 }
}

{
  "type": "analysis_complete",
  "data": {
    "key_takeaways": ["Revenue increased 15% YoY"],
    "insights": "Strong growth in Q4"
  }
}

{
  "type": "chart_generated",
  "data": {
    "config": { "type": "line", "x": "date", "y": "revenue" },
    "sql": "SELECT..."
  }
}

{
  "type": "response",
  "data": {
    "content": "Revenue trends show strong Q4 performance with 15% year-over-year growth."
  }
}

​

Data Catalog Configuration

​

Table Selection

{
  "tables": ["users", "orders", "products"],
  "restricted_tables": ["internal_logs", "sensitive_data"]
}

​

Selectable Columns

{
  "selectable_columns": {
    "users.region": true,
    "products.category": true,
    "users.user_id": false // Skip high-variance columns
  }
}

• High-cardinality columns (IDs, timestamps)
• Numeric columns with many unique values
• Free-text fields

​

Golden Assets Management

​

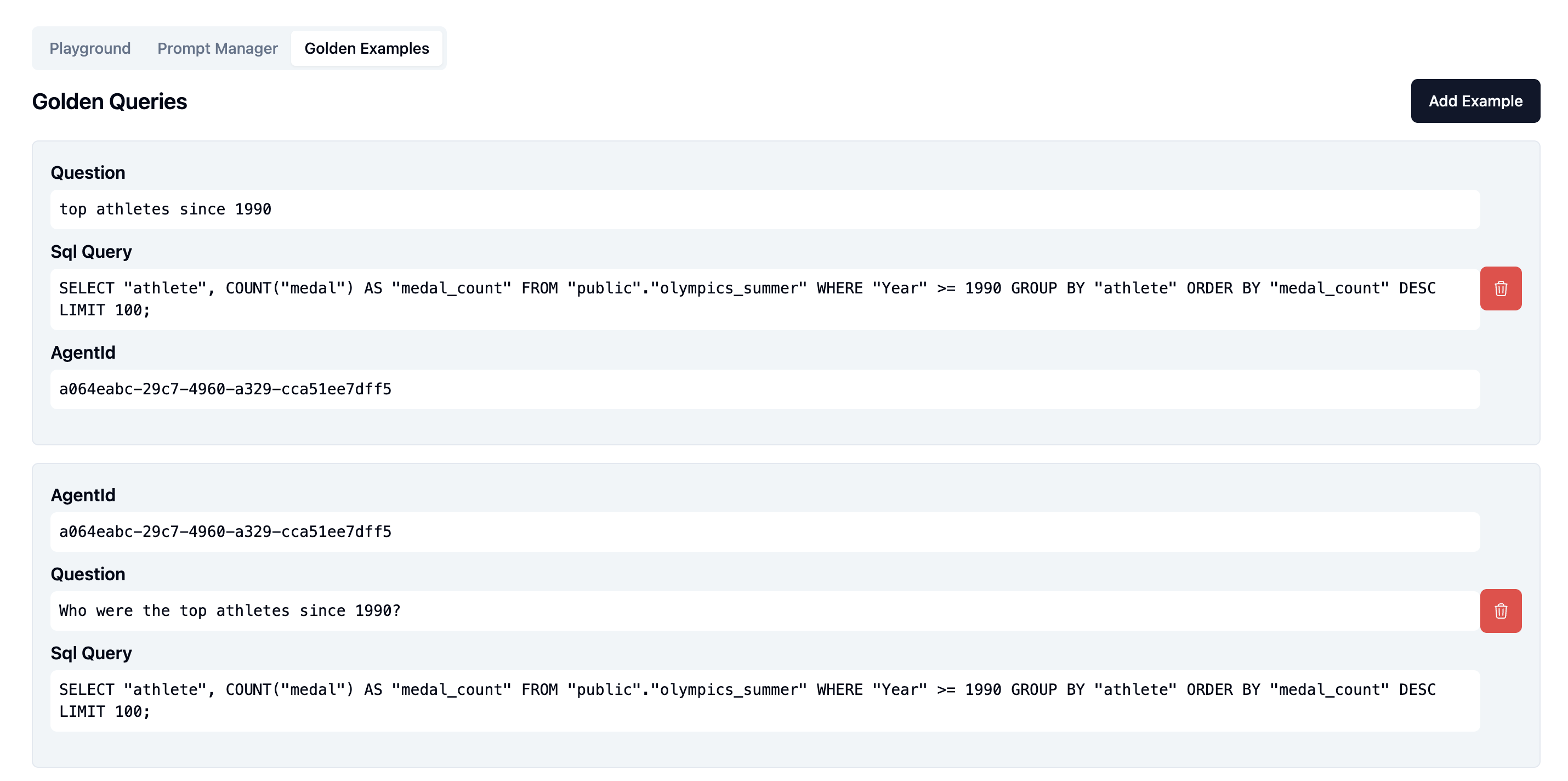

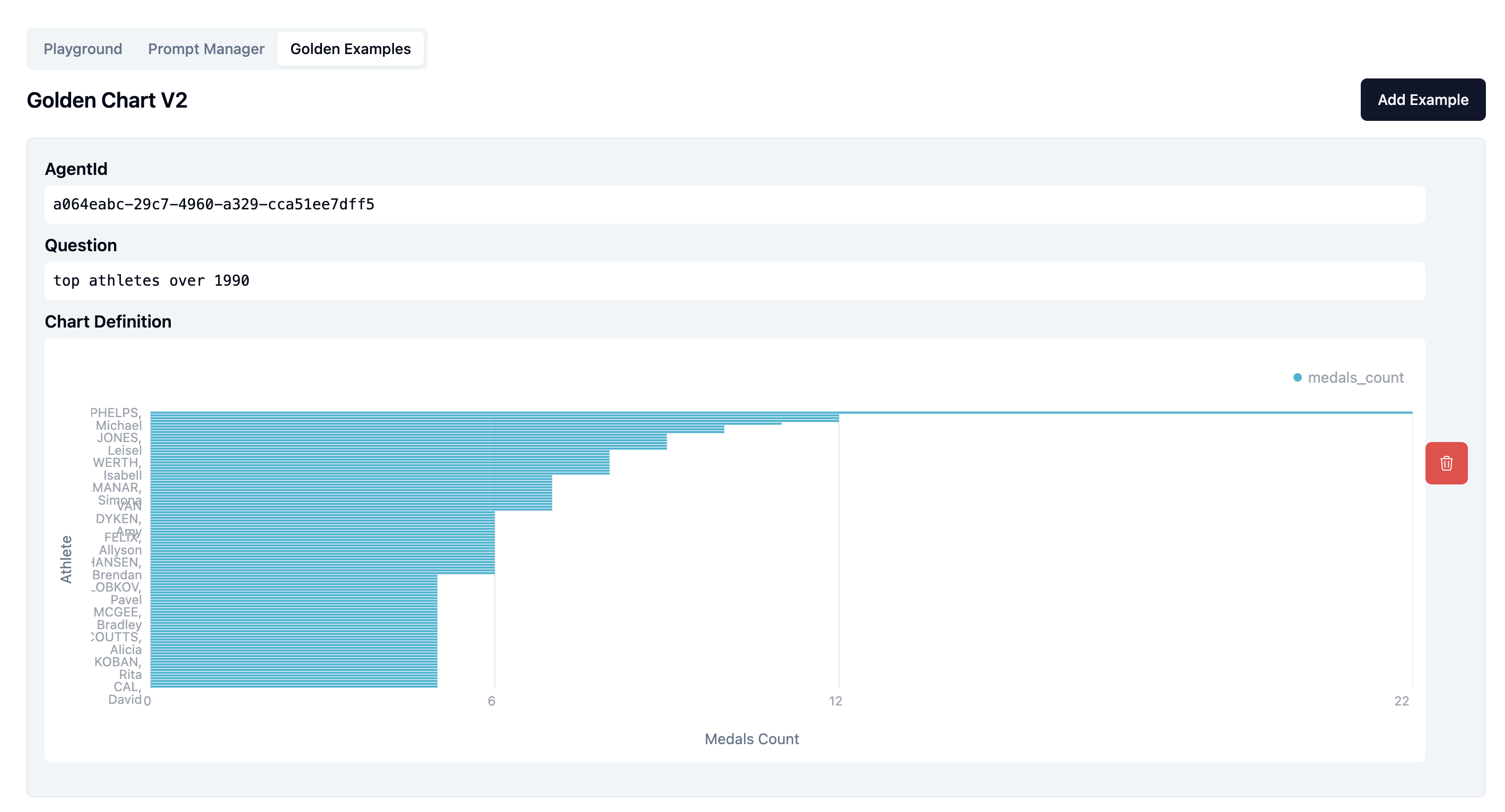

Creating Golden Assets

POST /api/golden-assets
{
  "question": "What are our top products by revenue?",
  "sql": "SELECT product_name, SUM(revenue) FROM sales GROUP BY product_name ORDER BY 2 DESC LIMIT 10",
  "analysis": "iPhone leads with $2.1M, followed by MacBook at $1.8M",
  "chart_config": {"type": "bar", "x": "product_name", "y": "revenue"}
}

​

How Golden Assets Work

1. Retrieves similar Golden Assets using vector search
2. Includes them as few-shot examples in tool prompts
3. Generates more consistent outputs for similar questions

​

Evaluations

​

Creating Test Sets

POST /api/test-sets
{
  "name": "Q4 Sales Analysis",
  "test_cases": [
    {
      "question": "What were total sales in Q4?",
      "expected_sql": "SELECT SUM(amount) FROM sales WHERE quarter = 4",
      "expected_insight": "Q4 sales totaled $5.2M"
    }
  ]
}

​

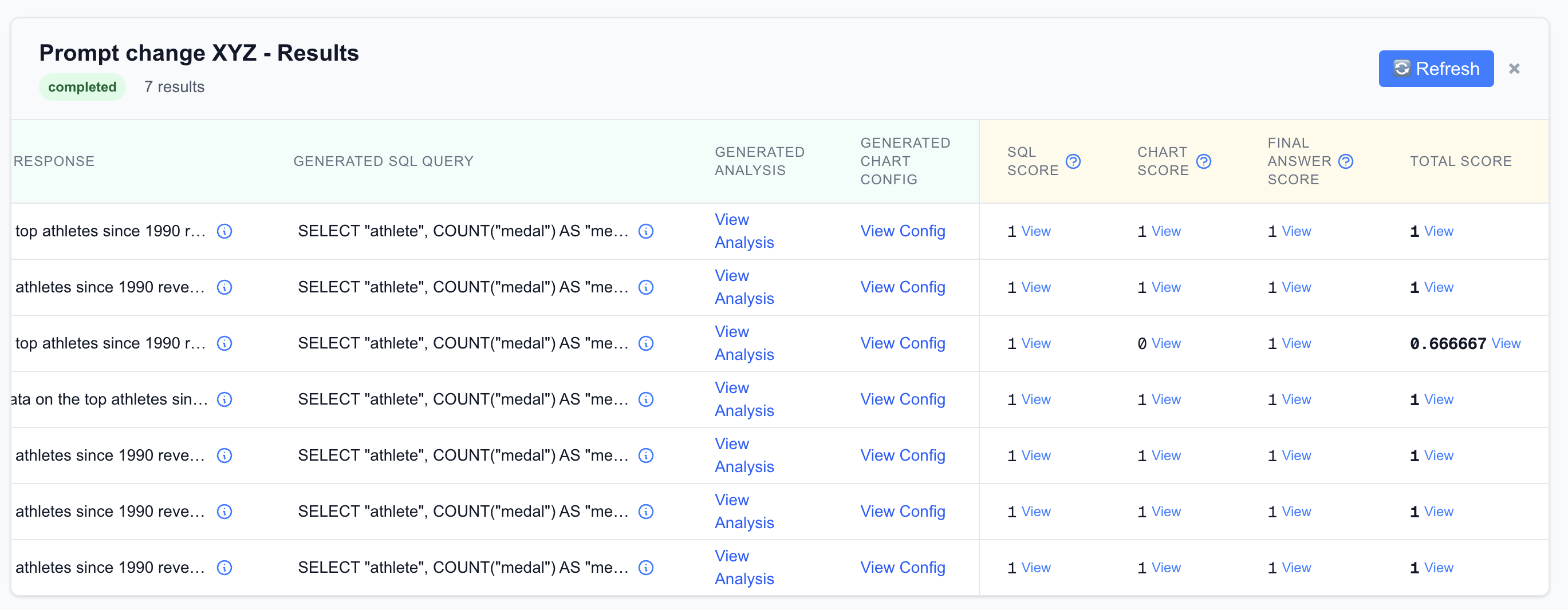

Running Evaluations

1. Runs each test case through the full agent pipeline
2. Compares outputs against expected results
3. Generates similarity scores and detailed reports

​

Security & Privacy

​

Data Access Controls

• Table-level: Restrict which tables the agent can query
• Column-level: Exclude sensitive columns from schema and analysis
• Row-level: Apply WHERE clause filters to limit data access

​

Data Handling

• At rest: Golden Assets stored with logical tenant separation
• In transit: All API calls require authenticated JWT tokens
• In processing: Only analyse_data tool receives actual data rows

// Example: Exclude sensitive columns
{
  "excluded_columns": ["ssn", "credit_card", "password_hash"],
  "restricted_queries": ["DROP", "DELETE", "UPDATE"]
}

​

Performance Optimization

​

Query Limits

-- Generated SQL includes automatic limits
SELECT * FROM large_table
WHERE created_date > '2024-01-01'
LIMIT 100  -- Added automatically

​

Caching Strategy

• Query results: Cached per session to avoid re-running identical SQL
• Golden Assets: Retrieved and cached for the conversation duration
• Schema metadata: Cached and refreshed periodically

​

Monitoring

• SQL execution time
• Token usage per conversation
• Golden Asset retrieval latency
• User satisfaction scores

​

Troubleshooting

​

Common Issues

• Check table/column names in schema
• Verify Golden Assets have correct SQL examples
• Review any custom prompts for the text_to_sql tool

• Ensure data has appropriate columns for visualization
• Check chart configuration format
• Verify previous chart context if this is a follow-up

• Add more Golden Assets for common question patterns
• Run evaluations to identify specific failure modes
• Refine selectable columns to include relevant filter options

​

API Reference Summary

• POST /api/chat - Start conversational session (SSE)
• GET /api/agents - List available agents
• POST /api/golden-assets - Create/manage Golden Assets
• POST /api/evaluations/run - Execute evaluation suite
