Overview

It is possible to control dashboard level filters from your application. This requires setup in the Upsolve Hub to configure a filter key, and then a prop to be set in your application to pass a filter value down to the filter through the key. Controlled filters and their set values are not visible to your end users by default. They are meant to be exclusively for your access.

​
Configuration in Upsolve Hub

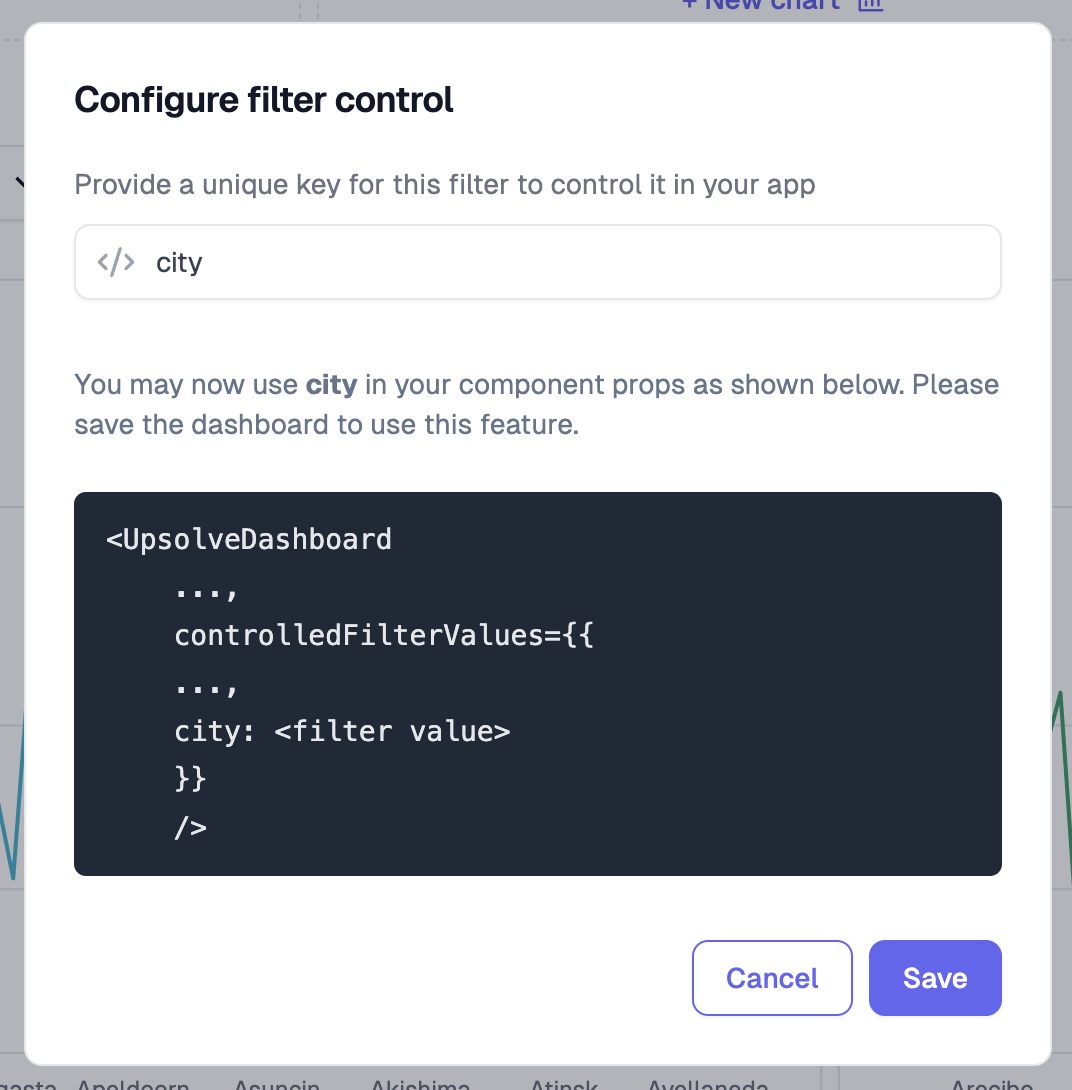

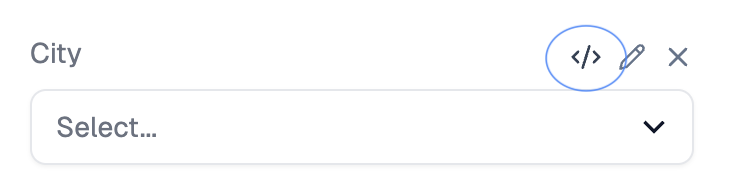

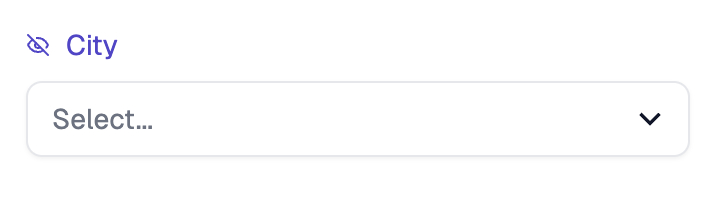

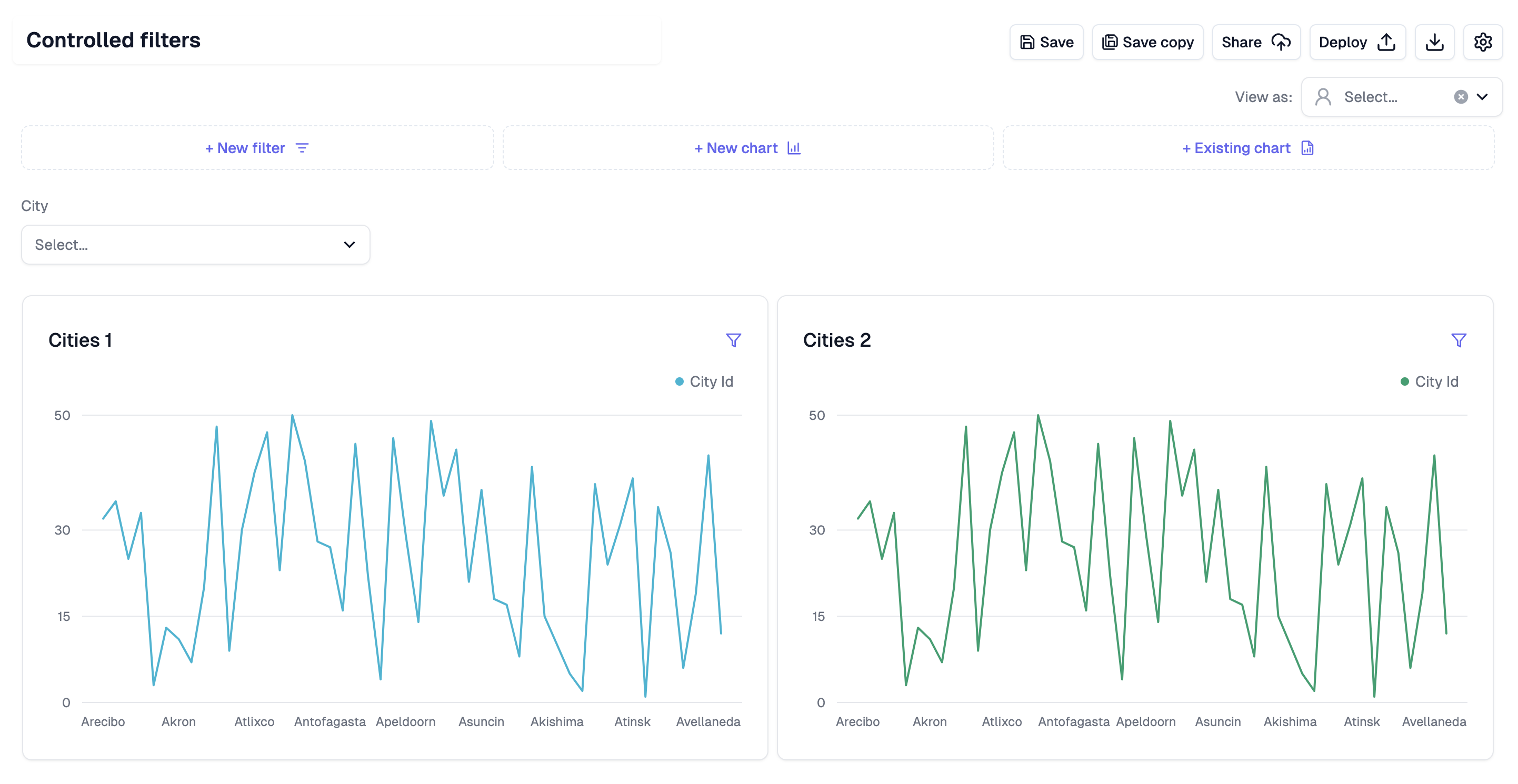

To make a filter controlled, first have a dashboard with a filter configured for it. Controlled Filter 1 Next, click the “code” icon on the filter Controlled Filter 2 Then, configure a key for the filter. In this case, we have chosen city Controlled Filter 3 Finally, when the control is added, note that the filter label changes color and the icon indicates that this filter will not be visible to your users Controlled Filter 4

​
Configuration in your application

Refer back to the in-product guide: Controlled Filter 3 Following this guide, configure a prop on your UpsolveDashboard component. Pass into the prop an object, where each key refers to a controlled filter key you have configured, and each value is the value the controlled filter should take. In this example, the prop would be:
<UpsolveDashboard
    ...,
    controlledFilterValues={{
        city: 'Abu Dhabi'
    }}
/>

​
Controlled Filters in Embedded Contexts

​
Default Behavior

By default, controlled filters are hidden when your dashboard is embedded in an iframe or used in tenant views. This is the intended behavior to keep controlled filters invisible to end users.

​
Showing Controlled Filters in Embedded Contexts

If you need to show controlled filters in embedded contexts (such as admin panels or internal tools), you can use the showControlledFilter prop:
<UpsolveDashboard
    ...,
    controlledFilterValues={{
        city: 'Abu Dhabi'
    }}
    showControlledFilter={true}
/>

​
Deploying with Iframe and URL Parameters

When deploying dashboards in iframes, controlled filters can be passed through URL parameters instead of using the controlledFilterValues prop.

​
URL Parameter Format

https://hub.upsolve.ai/share/dashboard/{dashboardId}?filter_{filterKey}={filterValue}
Examples:
# Single filter
https://hub.upsolve.ai/share/dashboard/123?filter_region=North%20America

# Multiple filters
https://hub.upsolve.ai/share/dashboard/123?filter_region=North%20America&filter_department=Engineering

# Complex values (JSON)
https://hub.upsolve.ai/share/dashboard/123?filter_categories=["Electronics","Books"]

​
Basic Iframe Implementation

<iframe
  src="https://hub.upsolve.ai/share/dashboard/123?filter_region=North%20America&filter_department=Engineering"
  width="100%"
  height="600px"
  frameborder="0"
>
</iframe>

​
Migration from Props to URL Parameters

Before (Props):
<UpsolveDashboard
  controlledFilterValues={{
    region: "North America",
    department: "Engineering",
  }}
/>
After (URL Parameters):
<iframe src="https://hub.upsolve.ai/share/dashboard/123?filter_region=North%20America&filter_department=Engineering" />
The dashboard automatically parses URL parameters and applies them as controlled filters.

​
Use Cases for showControlledFilter

​
Example: Visible Controlled Filters



// Customer-facing dashboard where controlled filters are seen
<UpsolveDashboard
    workspaceId="your-workspace-id"
    tenantJWT="customer-jwt-token"
    controlledFilterValues={{
        region: 'North America',
        department: 'Engineering'
    }}
        showControlledFilter={true}
/>

​
Best Practices

  1. Use Descriptive Keys: Choose filter keys that clearly indicate their purpose (e.g., userRegion, departmentFilter)
  2. Document Your Filters: Keep track of which filters are controlled and their expected values
  3. Test Both Contexts: Test your dashboard both with and without showControlledFilter to ensure proper behavior

​
Troubleshooting

​
Controlled Filter Not Working

  • Verify the filter key matches exactly between Hub configuration and your controlledFilterValues prop
  • Check that the filter value type matches the filter configuration (string, number, array, etc.)

​
Controlled Filter Hidden When It Should Be Visible

  • Set showControlledFilter={true} to override the default hiding behavior
