This article guides you through the process of connecting MSSQL to Upsolve, allowing you to seamlessly access your MSSQL data within the Upsolve platform.

​
Prerequisites

Before you start, you will need the following information from MSSQL.

  • Host (Endpoint without the port or database name)
  • Port (The port used to connect to your database)
  • User (The username of the service account)
  • Password (The password for the service account user)
  • Database Name (The database name of your service)
  • SSL, if active (Toggle “Connect Through TLS” switch)

​
Connecting MSSQL to Upsolve

  1. Navigate to the data model page in Upsolve.

  2. In the side menu bar, click the “New Data Source” button to initiate the connection process.

  3. In the modal that appears, select “MSSQL” as your data source.

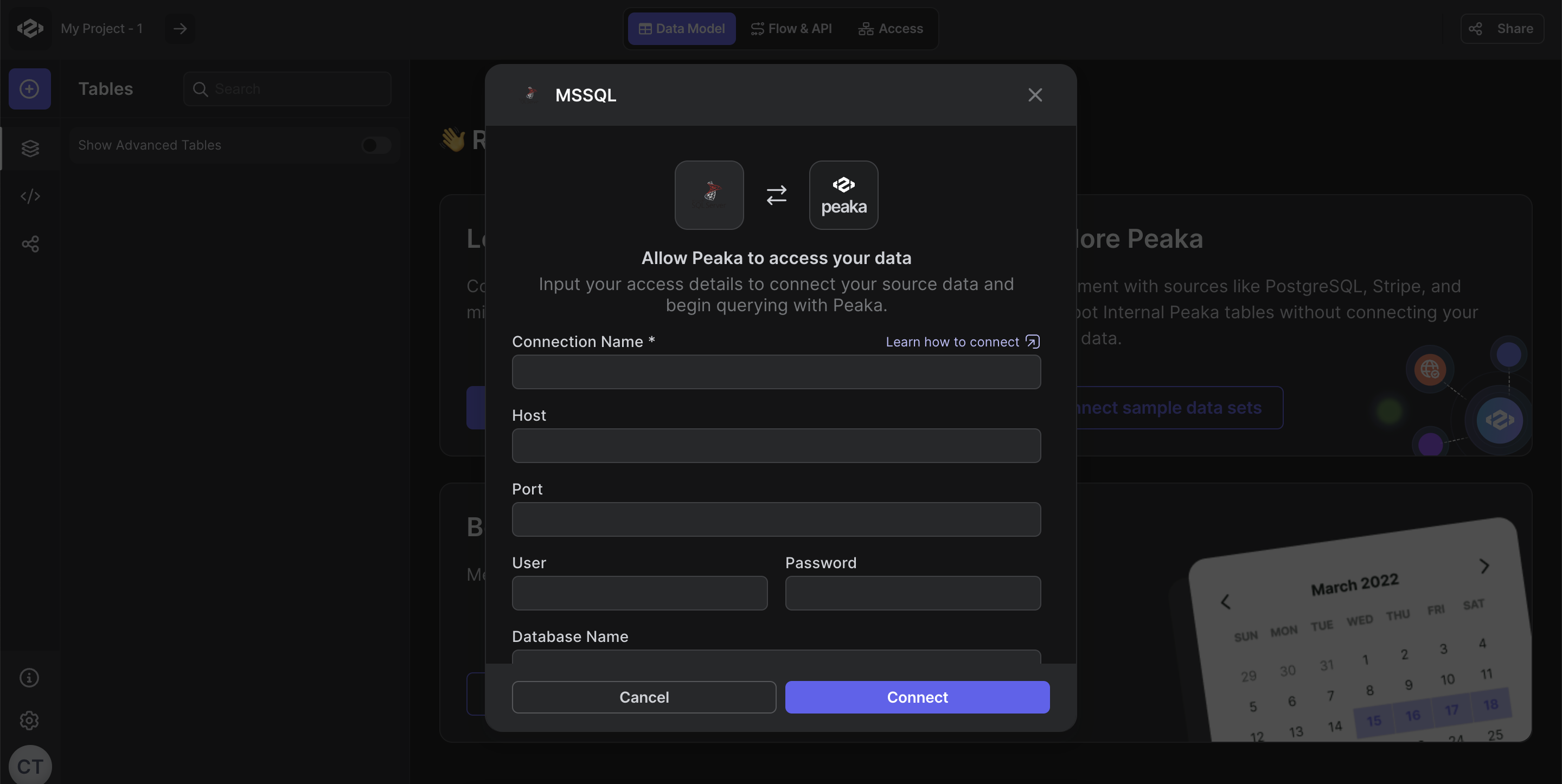

  4. Fill out the data source details form as shown in the image below, including:

    • Host (Endpoint without the port or database name)
    • Port (The port used to connect to your database)
    • User (The username of the service account)
    • Password (The password for the service account user)
    • Database Name (The database name of your service)
    • Connect Through TLS (Toggle switch if SSL is active)

  5. Click “Next” to establish the data source.

Congratulations! You’ve successfully created a new data source between MSSQL and Upsolve. You can now access and manage your MSSQL data seamlessly within the Upsolve platform.
